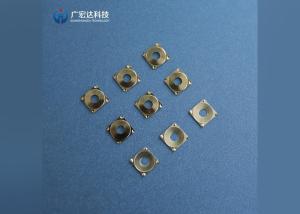

Stainless Steel SUS301 Tactile Metal Domes , 4 Leg Cross Click Domes With Hole

Name: Stainless Steel SUS301 Tactile Metal Domes 4 Leg Cross Click Domes With Hole
Brand: Guanghongda
Price: 0.29 USD

China Stainless Steel SUS301 Tactile Metal Domes , 4 Leg Cross Click Domes With Hole factory

Place of Origin : China

Brand Name : Guanghongda

Model Number : GHD19009

MOQ : 500-999 Pieces

Price : $0.29

Application : Telecommunication Equipment

Keypad Button Material : stainless steel SUS301

Metal dome Shape : Cross (4-leg) Shape

Dimple : 0/1/4/5 dimple with hole

Metal dome Material : Stainless Steel SUS301

Surface finishing : Gold Plating

Force : 100~600gf

Metal dome trip : 0.12~0.6mm( custom as per requirement)

Thickness : 0.05~0.15mm ( as per requirement)

Life : 100K ~ 3KK shots

Click ratio : 50+/-10% ( normal)

Size tolerance : +0.1mm

Selling Units : Single item

Single package size : 3X0.1X0.2 cm

Single gross weight : 0.020 kg

Package Type : 1) packed by PET bag ( Full package qty : 5000 pcs / PET bag ) 2) packed by SMD Dome Peel ( as per your design request ) 3) packed by SMD dome tube ( asp per your design request) Carton package, inner 4 -corner wrap by bubble foam prevent from damage d

Contact Now

Stainless Steel SUS301 Tactile Metal Domes , 4 Leg Cross Click Domes With Hole

What is the Four-Leg Metal dome ?

Four-leg metal domes, also referred to as (four-leg tactile metal domes) or (cross metal domes), are four-legged domes designed specifically for mounting on single or double sided PCB’s, FPC circuits, and silver flex membranes where traces of negative and positive can be designed under the dome on the same side of circuits.

To carter various requirement from different customers' , Guanghongda Technology can help you customerize depends .

MAJOR PARAMETER OF 4-LEG CRUCIFORME Metal DOME
DESCRIPTION	INDEX
Metal dome Material	SUS301
Shape	4-leg Cruciforme dome
Surface Treatment	Stainless Steel,Nickel Plating Silver plating ,Gold plating
Voltage/Current	12mA @ 24 Volts
Operating Temperature	-40℃~70℃
Dimension Tolerance	+0.1mm
Breakdown Resistance	Nickel plating <1ohm Stainless plating<3ohm
Weatherability	High-temperature : +70℃ Low-temperature : -40℃
Tactile Dome Click ratio :	50±10% (Normal condtion)
Tactile Dome Force :	100-600g

Stainless Steel SUS301 Tactile Metal Domes , 4 Leg Cross Click Domes With Hole

Q1: Are you Trading company or manufacturer ?

A: We are a Professional Trading & Manufacturer Integrated .

Q2 : Can you offer OEM Service ?

A: Surely Okay , we have Seasoned OEM service experience .

Q3: what is the Lead time of sample ?

A : It takes 2-7working days depends .

Q4: How fast can i get the Quotation ?

A: 30mins ~ 24Hours depends .

Please do not hesitate to contact with us , if you have any inquires .
